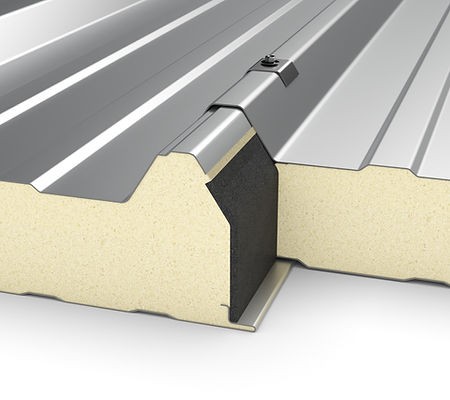

Sandwich Roof Panels
This wall insulating sandwich panel is made of a polyisocyanurate (PIR) foam core and two prepainted steel facings. Its external facing is available in different finishes such as ribbed or micro-ribbed.
Specifications
Characteristics of the panel
Dimensions
Thickness of outside / inside (mm)
Overall Length (mm)
NOMINAL THICKNESS OF THE PANEL (mm)
20
30
50
60
80
100
120
0.3 to 0.6
Minimum: 2500
Maximum: 11500
Weight (Kg/m²)
Ex. in standard thickness 0.5/0.5
9.25
9.7
10.5
10.93
11.8
12.6
13.5
Reaction to Fire
Euroclass according to EN 13501-1
Standard B-s1,d0 / B-s2,d0
Thermal Performance
Insulation Density
Thermal resistance Rc (m².K/W)
Thermal transmittance Uc (W/m².K)
Normal Density (kg/m³)
0.95
1.43
2.38
2.86
3.81
4.76
5.71
1.05
0.7
0.42
0.35
0.26
0.21
0.18
40 kg/m³
